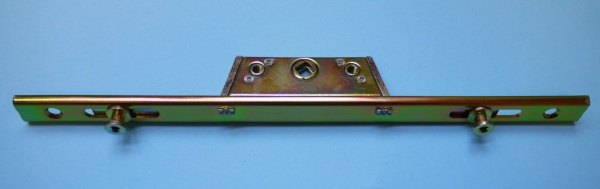

WMS Avocet U-Rail Window Locking Mechanisms

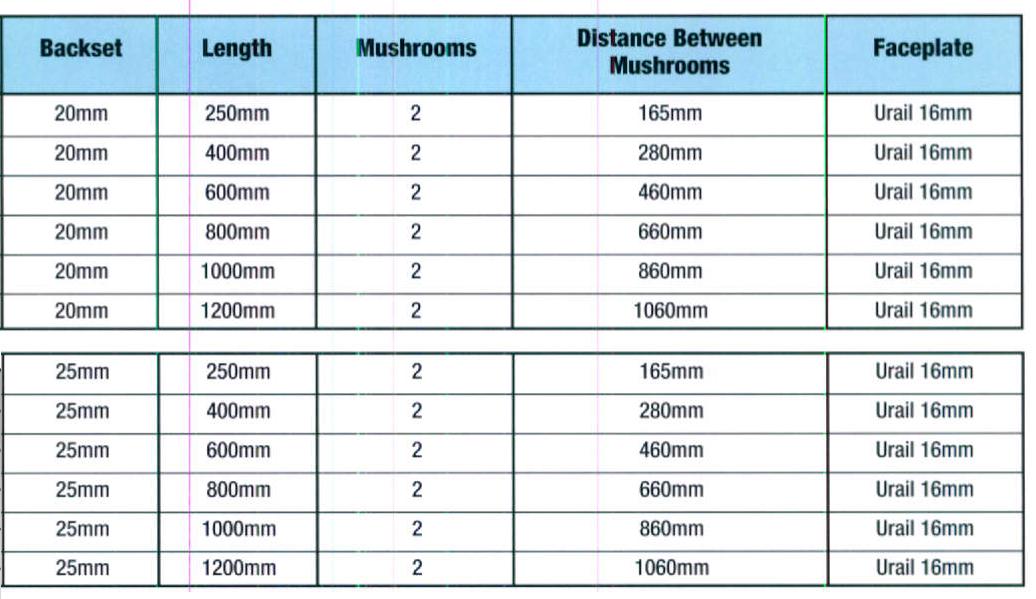

Available with 20mm or 25mm backset
PLEASE NOTE: Due to postage contraints the 800mm, 1000mm, 1200mm can only be sent via courier and not through the normal mail - click here to order the longer length
Information from the manufacturer
- Offset espagnolette bar designed for profiles without a eurogroove.
- Profile related keeps with night vent position.
- Adjustable mushroom cams.
- 19mm cam travel.
- 360 hours salt spray corrosion resistance.
Not sure what window lock you need?
Call us on 01204 652211 for free advice
Espag Lock Backset Measuring Guide
SIMPLE STEPS TO HELP YOU CHOOSE THE CORRECT FOR YOUR WINDOW LOCK
To Measure the backset on your window lock you need to measure from the middle of the spindle hole to the front of the face plate. Take a look at the picture below and the red arrows show you where to measure.
The holes that the Bolts go through are a set distance and are the same on ALL window locks (43mm).
