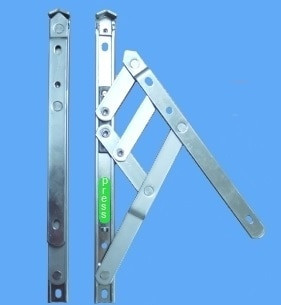

Restricted window hinges
Hinges ideally suited for a childs bedroom or windows where someone may accidentally fall out of the window.
Features
Built-in mechanism limits opening to a maximum of 100mm in the restricted position.
Tested to BS6375 to withstand a force of 600N when opened to its restricted position.
Built-in quick–release levers allow window to be fully opened for easy cleaning, total ventilation or emergency escape.
Restrictor mechanism automatically relocates and re–sets as the window is closed.
Available lengths: 12”, 16”, 20” or 24”
Stack height: 13mm
Width of hinge: 18mm
All our window hinges are sold in pairs
There are different styles of double glazed windows and we have various friction hinges to suit them such as Side Hung, Top Hung, Fire Escape, Easy Clean, or Slimline. Click on the different style to go to that page.
-
12" Restricted Hinges
-
16" Restricted Hinges
-
20" Restricted Hinges
-
24" Restricted Hinges
-
All Sizes Restricted Hinges
- Cotswold Window Hinges - Restricted
- Product
- Qty in Cart
- Quantity
- Price
- Subtotal
-
Window Hinge Fitting Kit- 20 Screws, 8 Packers
Handles & Hinges
£5.46 Inc. VAT£4.55 Ex. VATKits that includes all the extras you need for fitting new window hinges. 8 x Hinge Packers to enable easy fitting on either 13mm or 17mm height rebates. These are a must if you don't want to mess around taking windows on and off. 20 x 19mm...£5.46 Inc. VAT£4.55 Ex. VAT -
Hinge Packers for UPVC Window Hinges
Misc
£3.37 Inc. VAT£2.81 Ex. VATWhite plastic packers to convert the stack height on window hinges from 13mm to 17mm. Come in a pack of 8.£3.37 Inc. VAT£2.81 Ex. VAT -
16" Fire Escape and Restricted UPVC Window Hinges
DGS
£21.13 Inc. VAT£17.61 Ex. VAT16" Fire Escape and Restricted friction hinges for upvc double glazing windows. This hinge allows the window to be restricted to prevent accidents but can be opened to a wider angle to allow emergency escape if required.The added bonus is that...£21.13 Inc. VAT£17.61 Ex. VAT -
12" Restricted Opening UPVC Window Hinges
Cotswold
£18.40 Inc. VAT£15.33 Ex. VATRestricted opening friction hinges for upvc windows, and can be used on Top hung double glazing windows Although these are classed as a 12" window hinges the metric length is 311mm Stack height is 13mm - if you require 17mm stack height then we...£18.40 Inc. VAT£15.33 Ex. VAT -
UPVC Window Hinges with Restrictor - 12" UNIVERSAL Side Hung
Universal
£10.43 Inc. VAT£8.69 Ex. VATClick for our Hinge Measuring Guide to help you choose the correct type and size of window hinge. 12" Universal SIDE Hung Window Hinges with Restrictor - Choice of 1 Restrictor or 2 Overall Length - 307mm Arm length - 230mm Stack height -...£10.43 Inc. VAT£8.69 Ex. VAT -
UPVC Window Hinges with Restrictor- 16" UNIVERSAL Top Hung
Universal
£11.86 Inc. VAT£9.88 Ex. VATClick for our Hinge Measuring Guide to help you choose the correct type and size of window hinge. 16" Universal Top Hung Window Hinges with Restrictor - Choice of 1 restrictor or 2 Overall Length - 412mm Arm length - 275mm Stack height -...£11.86 Inc. VAT£9.88 Ex. VAT -
UPVC Window Hinges with Restrictor - 16" UNIVERSAL Side Hung
Universal
£12.84 Inc. VAT£10.70 Ex. VATClick for our Hinge Measuring Guide to help you choose the correct type and size of window hinge. 16" Universal SIDE Hung Window Hinges with Restrictor - Choice of 1 restrictor or 2 Overall Length - 412mm Arm length - 275mm Stack height -...£12.84 Inc. VAT£10.70 Ex. VAT -
16" Restricted Opening UPVC Window Hinges
Cotswold
£21.13 Inc. VAT£17.61 Ex. VATClick for our Hinge Measuring Guide to help you choose the correct type and size of window hinge. 16" Restricted opening friction hinges for UPVC double glazing windows, and can be used on top hung or side hung windows Although these are...£21.13 Inc. VAT£17.61 Ex. VAT -
20" Top Hung UPVC Window Hinges
Cotswold
£13.20 Inc. VAT£11.00 Ex. VATClick for our Hinge Measuring Guide to help you choose the correct type and size of window hinge.** All of our window hinges are sold in PAIRS ** Top hung friction hinges for upvc double glazing windows from Cotswold. Although these are...£13.20 Inc. VAT£11.00 Ex. VAT -
Bulk Purchase Box of 20" Top Hung UNIVERSAL Window Hinges - 25 Pair
Universal
£130.52 Inc. VAT£108.77 Ex. VATClick for our Hinge Measuring Guide to help you choose the correct type and size of window hinge. Bulk Purchase Box of 20" Top Hung UNIVERSAL Window Hinges - 25 Pair Overall Length - 512mm Arm length - 323mm Stack height - 13mm Hinge width -...£130.52 Inc. VAT£108.77 Ex. VAT -
20" Top Hung UPVC Window Hinges, Slimline Defender
Securistyle
£19.97 Inc. VAT£16.64 Ex. VATClick for our Hinge Measuring Guide to help you choose the correct type and size of window hinge.** All of our window hinges are sold in PAIRS ** 20" Slimline Defender top hung friction hinges for UPVC double glazing windows from...£19.97 Inc. VAT£16.64 Ex. VAT -
UPVC Window Hinges with Restrictor - 20" UNIVERSAL Top Hung
Universal
£13.68 Inc. VAT£11.40 Ex. VATClick for our Hinge Measuring Guide to help you choose the correct type and size of window hinge. 20" Universal Top Hung Window Hinges with Restrictor - Choice of 1 restrictor or 2 Overall Length - 512mm Arm length - 323mm Stack height -...£13.68 Inc. VAT£11.40 Ex. VAT
