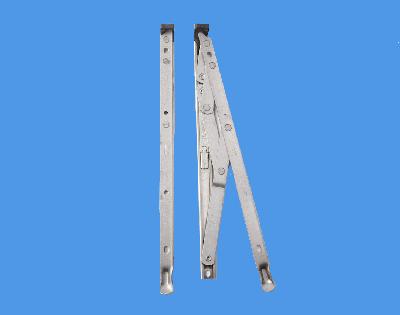

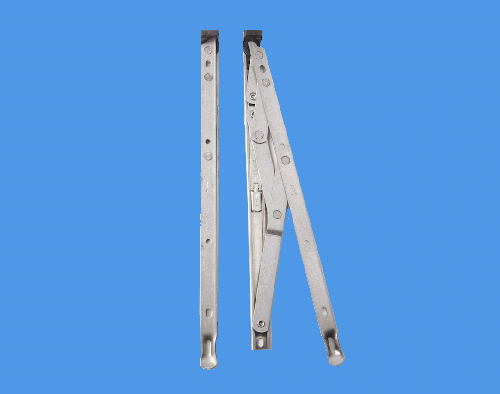

16" Restricted Opening UPVC Window Hinges

(No reviews yet) Write a Review
WHIN-REST-COTS-16in (HIN06516) (5055621405838)
In Stock
  • 16 Restricted Opening UPVC Window Hinges
  • 16 Restricted Opening UPVC Window Hinges
  • 16 Restricted Opening UPVC Window Hinges
  • 16 Restricted Opening UPVC Window Hinges
  • 16 Restricted Opening UPVC Window Hinges
£21.13 Inc. VAT
£17.61 Ex. VAT


Click for our Hinge Measuring Guide to help you choose the correct type and size of window hinge.

16" Restricted opening friction hinges for UPVC double glazing windows, and can be used on top hung or side hung windows

  • Although these are classed as a 16" window hinges the metric length is 406mm
  • Stack height is 13mm - if you require 17mm stack height then we have easy-fit hinge packers available.
  • Width is 18mm
  • Supplied as a handed pair where both hinges contain the restrictor catch.
  • Also available in  12", 20" and 24"


If you need any further help then call Handles and Hinges on 01204 652211


Information from the manufacturer
The child resistant catch limits the opening to 100mm maximum when restricted.
Tested to BS6375 Part 2 1987 to withstand a force of 600N when opened to it's restricted position.
Built in quick release levers allow windows to be fully opened for easy cleaning conforming to BS8213 Part 1 1991.
The restrictor catch automatically resets when the window is closed.
Cost effective alternative to additional restrictor stays and simple to fit.
Widely used by many social housing specifiers and fabricators.
Suitable for BS7415 kite marked windows and all local authority.
Manufactured in the United Kingdom using Ferretic stainless steel
Austenetic version for coastal areas available by special order.
Made by Cotswold Architectural Products

View AllClose


Frequently Asked Questions

Yes. All our window hinges come in pairs.

We can't promise that however if you have a upvc frame then its easy to put new screw holes in using self-tapping screws. Click here for screws

This is the thickness of the hinge when all the parts are closed or stacked on top of each other. Our hinges are all 13mm stack but if you need 17mm stack then our hinge packers will do the job for you.

View AllClose

Additional Information

16 Inch
Top Hung
