Vitawin Espag Window lock.
The Vitawin espag window lock is a great replacment for all of the Vitawin espag range. They are available in 20mm and 22mm backsets.
PLEASE NOTE: Due to postage contraints the 800mm, 1000mm and 1200mm can only be sent via courier and not through the normal mail.

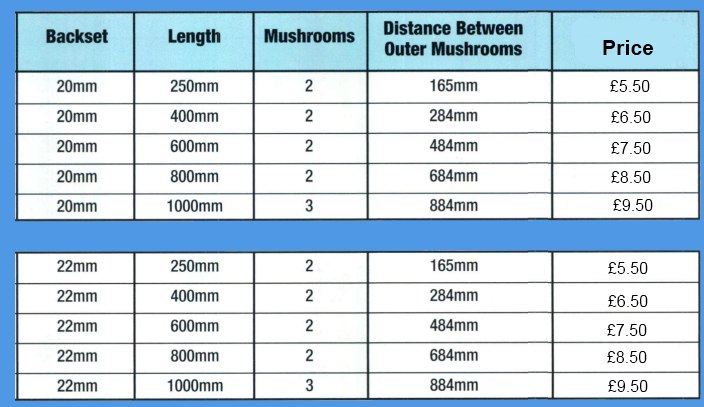

|Backset||Length||Mushrooms||Distance between outer mushrooms|
A high performance, top quality, espagnolette rod for your double glazed windows that you fit and forget - at a competitive price.
Vitawin's unique design gearbox supplies smooth operation of the rod and, coupled with the rod being manufactured in quality steel, gives strengths, reliability to the functionality of the window sash, suitable for full depth or shallow Euro grove systems.
The mushroom cams are fully adjustable for improved pull-in and weatherseal protection.
Espag Lock Backset Measuring Guide
SIMPLE STEPS TO HELP YOU CHOOSE THE CORRECT FOR YOUR WINDOW LOCK

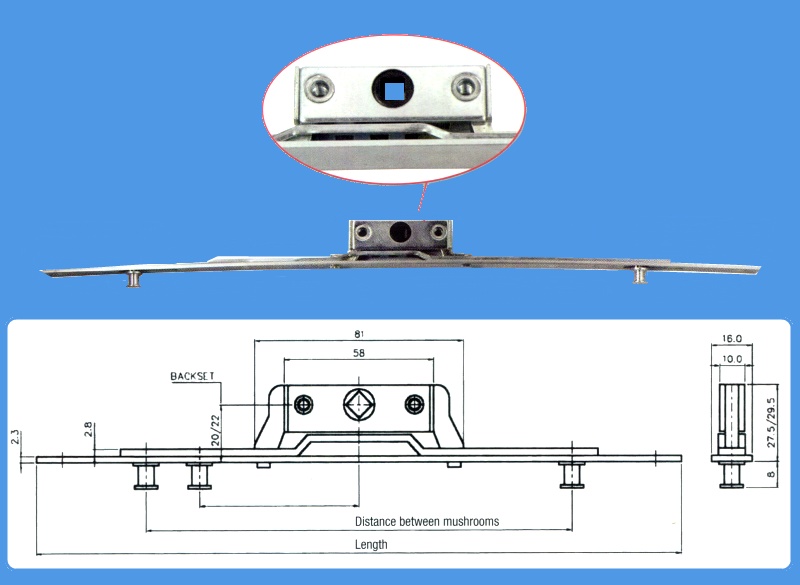

To Measure the backset on your window lock you need to measure from the middle of the spindle hole to the front of the face plate. Take a look at the picture below and the red arrows show you where to measure.
The holes that the Bolts go through are a set distance and are the same on ALL window locks (43mm).
