Offset Window Locking Mechanisms by Maco

Price £10.74 (Inc. VAT)
£8.95 (Ex. VAT)
(20 reviews) Write a Review
Part Number:
WL-ESP-OFF
Condition:
New
Availability:
In Stock
Delivery Cost:
Calculated at Checkout

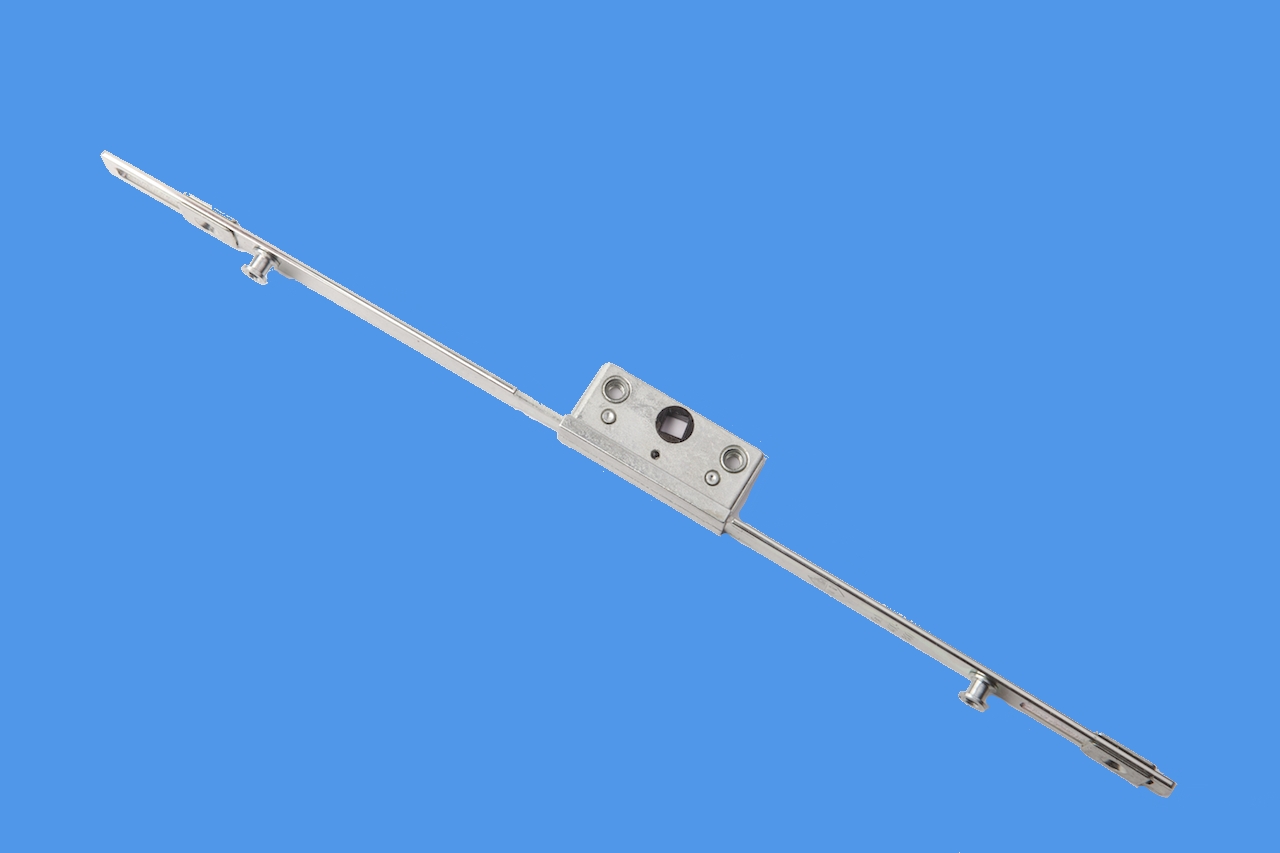

Offset Window Locking Mechanisms by Maco

MACO offset mushroom bolt espagnolettes for outward opening double glazing windows incorporate all the benefits of safety and security expected of modern window technology in today´s environment.

Available with 20mm or 25mm backset (Click here if you are unsure how to measure the backset)

The width of the faceplate is 16mm

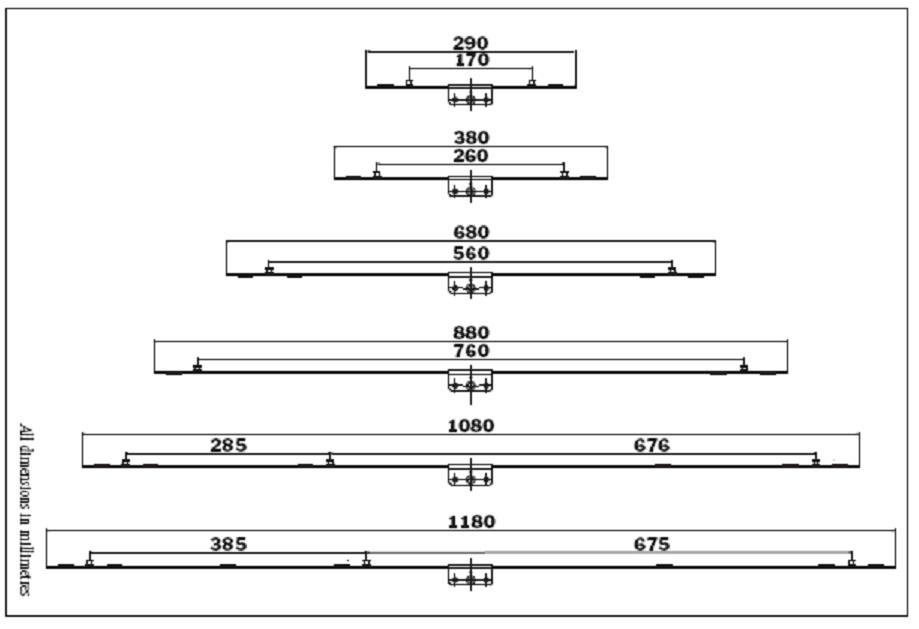

These are described by industry standard lengths, but the actual length may differ slightly. see diagram below for specific measurements.

  • 310mm    20 or 25mm backset, window lock / mechanism           (Actual length 290mm)
  • 400mm    20 or 25mm backset, window lock / mechanism           (Actual length 380mm)
  • 600mm    20 or 25mm backset, window lock / mechanism           (Actual length 580mm)

PLEASE NOTE: Due to postage contraints the 800mm, 1000mm and 1200mm can only be sent via courier and not through the normal mail.

Click here to go to the "longer lengths" page

  • 800mm    20 or 25mm backset, window lock / mechanism           (Actual length 780mm)
  • 1000mm  20 or 25mm backset, window lock / mechanism           (Actual length 980mm)
  • 1200mm  20 or 25mm backset, window lock / mechanism           (Actual length 1180mm)




Measuring the backset on a window espag mechanism:




Not sure what window lock you need?



 Call us on 01204 652211 for free advice





Information from the manufacturer

Offset espagnolette bar designed for profiles without a eurogroove.



Profile related keeps with night vent position.



Adjustable mushroom cams.



19mm cam travel.



360 hours salt spray corrosion resistance.



Espag Lock Backset Measuring Guide



 SIMPLE STEPS TO HELP YOU CHOOSE THE CORRECT FOR YOUR WINDOW LOCK









To Measure the backset on your window lock you need to measure from the middle of the spindle hole to the front of the face plate. Take a look at the picture below and the red arrows show you where to measure.



The holes that the Bolts go through are a set distance and are the same on ALL window locks (43mm).
