Multi-fit Patio Door Wheels / Rollers

Hover over image to zoom

  • Low Profile Patio Wheel
  • Multi-fit Patio Door Wheels / Rollers
  • High Profile Patio Wheels
  • Low Profile Patio Wheels
  • The high profile wheels will replace the old caterpillar wheels
  • Patio Door Roller
£11.04 (inc VAT) £9.20 (exc VAT)
222.00 Grams
In Stock
Calculated at checkout

 Product Description

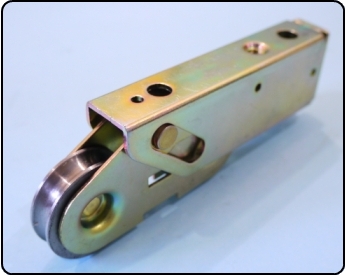

Multi-Fit Patio Door Roller - Fits all major sliding patio doors in aluminium, PVC-u and timber.

Available in High or Low profile see images.

Not sure which type you need - then see below.

** The price is for a single roller as differing sizes of door could require 2 or 3 rollers. **

Can be used to replace patio rollers on Magnet, Monarch, John Carr doors, Wickes door, B and Q doors, St Helens Glass etc.
Low profile replace the Grace Haven UK patio door wheel

Not sure whether you need High or Low profile Patio wheels - Do what our engineer does. Take both!

There is nothing worse than getting your patio doors stripped down and then finding you have ordered the wrong parts. Choose the multi-set option to buy a pair of each (low and high profile)  and when your job is finished return the non-used wheels for a refund* * Wheels must be returned within 30 days of purchase.

Pay £35 (plus VAT) for 2 x low profile wheels plus 2 x high profile wheels.

Return the set you don't use within 30 days and we will refund £17.50 plus VAT (Total £21.00)


Not sure which double glazed door part you need?

Call us on 01204 652211 for free advice



  •  Provides wide range of adjustment on wheel height.  Adjustable possible after installation

  •  Offers a high degree of corrosion resistance for long  life by using high quality components. Tested by British Standards Institute to  over 7,000 cycles of operation with a weight capacity of Steel Wheel

  •  Fixing Screws to suit most applications, uses top and  back fixing screw to ensure secure location into section.

  •  Standard fixing screws, No.10 Self Top fixing and Back  fixing

  •  Double Row Bearing Provides increase in stability and  smooth rolling action

  •  Patented Design Lubrication

  •  Heavily greased during assembly

Patio Roller Measuring Guide



Patio door rollers come in various sizes, the rollers on this page can be made to fit almost anything as long as it slides.

If you are unsure of the size you need after looking at the drawing below, then order both (multi set) and return what you don't use.


 Other Details

Delivered for just £1.44

 Find Similar Products by Category

 Product Reviews

Showing reviews 1-10 of 43 | Next

  1. Saved myself a large amount!

    Posted by Martin on 30th Nov 2016

    Had a quote from a local firm for £150 to fix my doors which seemed high having looked into it. Bought a set of these rollers from handles and Hinges and it was really easy to fit them and the doors are rolling free for the first time in years. Will return the set I don't need, but it was great knowing that once I'd taken the door off I then did not have to wait again if the set I ordered were the wrong type. They seem well made, good value and a number of fitting option possibilities. I was delighted.

  2. So easy to install!

    Posted by STEPHEN MORGAN on 28th Nov 2016

    I found the website much more helpful than others out there. ie: It showed how you measure the profile of the door to establish what size wheels/runner set you will need. Once received they were an absolute doddle to fit. Had the slave door off, new runners on and door refitted in less than 15 minutes. And once done, perfect! Best the doors have operated.

  3. takes minutes to fit and superb quality

    Posted by Mike on 18th Aug 2016

    these work very well, not cheap, but good value for money. added powdered graphite down the side of the wheels - not sure if they had sealed bearings though.Fitted perfect. Good quality.

  4. Patio door roller wheels

    Posted by Ian Coombes on 14th Jun 2016

    A slight adjustment required . Had to drill two small fixing holes . Still only took half an hour to fit from start to finish . Good product . Thank you .

  5. Multi-fit Patio Door Wheels

    Posted by James Wills on 19th Nov 2015

    Perfect, easy to fit doors like new.

  6. Quality Product

    Posted by Mark Lewis on 13th Nov 2015

    Purchased as a replacement for a B&Q sliding door. Fitted perfect. Good quality.

  7. Good as new replacement rollers

    Posted by Dave F. on 16th Oct 2015

    Happy wife after roller replacement. No problem fitting.

  8. Needing reliable replacement rollers for your patio door

    Posted by bob Ross on 14th Sep 2015

    I purchased the set of 2 rollers for my patio door not knowing which one I'd need. It turned out I needed the high profile. I'm so glad I bought the 2 different sets offered by this company. Saved me a lot of time and bother. Great service from Handles and Hinges. Thank you.

  9. patio door rollers

    Posted by tony on 10th Aug 2015

    ordered both the high and low runners as suggested.A excellent product, very strong and a piece of cake to refit to Wickes patio doors ,which were at least 25 years old .the service was second to none..and returned the runners not used,,Cheers

  10. Really useful idea

    Posted by Geoff Moore on 31st May 2015

    Received both high and low profile runners. Fitted low profile to old Wickes aluminium sliding doors. Had to drill one new hole in the frame to allow fitment of new runners which replaced the old original plastic mounted single wheel ones. The difference is brilliant as the doors now run very smoothly on the old track. Returned the unused high profile runners for refund. Great service.

Showing reviews 1-10 of 43 | Next
