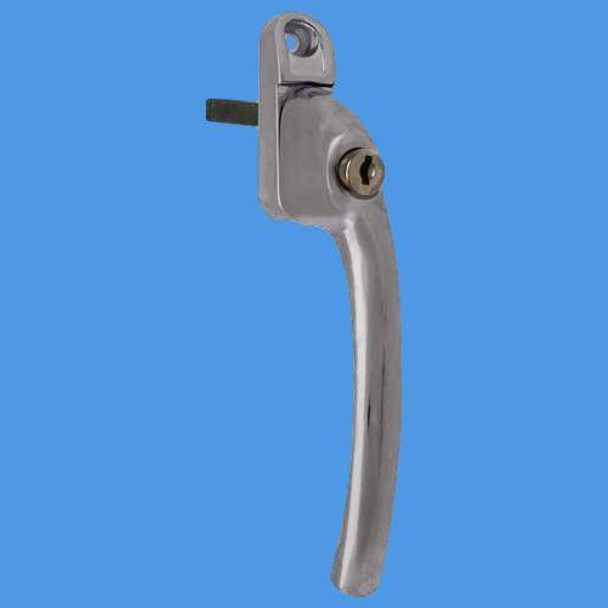

Hoppe Tokyo Inline Locking Espag Window Handle In Chrome

How To Measure Your Espag Window Handle

Espag Window Handle Measuring Guide

Simple steps to help you Measure the Spindle for your Window Handle

Make sure the spindle is pushed right back in to the existing handle and then measure the amount it protrudes from the handle as per (referenced A) the drawing on the left.

If you do not have a handle you can measure the existing Window Bolts you have. The bolts should be the same length as the spindle length that you need but it is not always the case

DO NOT MEASURE THE SPINDLE TOTAL LENGTH WHILST IT IS OUT OF THE HANDLE,

THIS WILL RESULT IN A SPINDLE THAT WILL BE TOO LONG FOR YOUR WINDOW
