Fab n Fix Multipoint 3 Hooks and 3 Rollers, 35mm Backset
This Fab n Fix multipoint comes as a one piece mechanism consisting of a latch, three hooks and three rollers.
- Distance between outer rollers: 1345mm
- Distance from top to middle roller: 485mm
- Distance from middle to bottom roller: 860mm
- Distance from top to bottom hook: 1100mm
- Lift lever or double spindle nightlatch.
- Undo screw in latchbolt and twist latch
Simple steps to help you choose the right size backset for your Gearbox

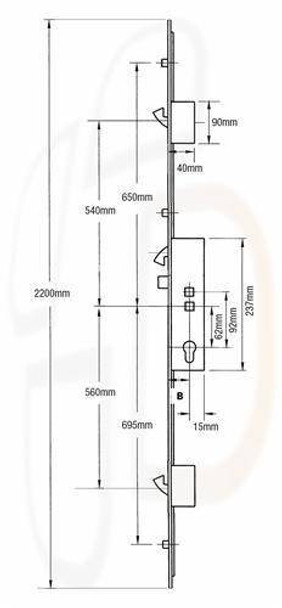

The Backset size is A in the diagram
Measure from the the front of the main faceplate (A in the diagram) to the middle of the spindle hole. This measurement is taken when the gearbox is attached to the main front face plate.
Measurement B is the PZ Centre.
