Corbin Multipoint 3 Deadbolts, 50mm Backset
- SKU:
- MPL-PS3500250
- Availability:
- Discontinued
Description
This Corbin multipoint lock is a one piece mechansim consisting of a latch and three deadbolts.
There are 2 different backset options for this multipoint. Please ensure that when selecting you have chosen the backset that you require.
Discontinued
**UNFORTUNATELY THIS ITEM HAS NOW BEEN DISCONTINUED**
This lock mechanism is no longer available.
If you require further information please call us on 01204 652211
Size:
Backset: 50mm

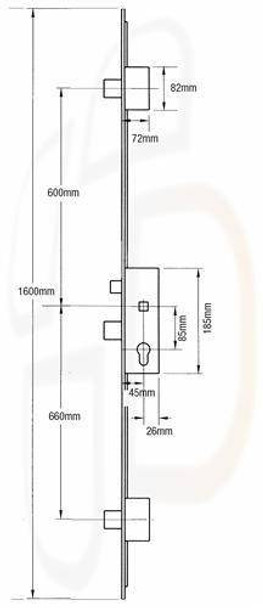

Distance between outer deadbolts: 1259mm
Operation:
Lever down
Notes:
Key operates all deadbolts by two 360 degree turns of the key. Half turn of the key withdraws the latch
Latch Reversal:
Put a flat bedded screwdriver into the back of the lockcase, push latch out and twist
Simple steps to help you choose the right size backset for your Gearbox
The Backset size is A in the diagram
Measure from the the front of the main faceplate (A in the diagram) to the middle of the spindle hole. This measurement is taken when the gearbox is attached to the main front face plate.
Measurement B is the PZ Centre.
