10" Top Hung UPVC Window Hinges

(32 reviews) Write a Review
SKU:
WHIN-TH-COTS-10in (HIN06110) (5055621405760)
UPC:
5055621405760
MPN:
WHIN-TH-COTS-10in
Condition:
New
Availability:
In Stock
Shipping:
Calculated at Checkout
  • 10 Top Hung UPVC Window Hinges
  • 10 Top Hung UPVC Window Hinges
  • 10 Top Hung UPVC Window Hinges
  • 10 Top Hung UPVC Window Hinges
  • 10 Top Hung UPVC Window Hinges
  • 10 Top Hung UPVC Window Hinges
£9.24 Inc. VAT
£7.70 Ex. VAT

Description

Click for our Hinge Measuring Guide to help you choose the correct type and size of window hinge.
** All of our window hinges are sold in PAIRS **

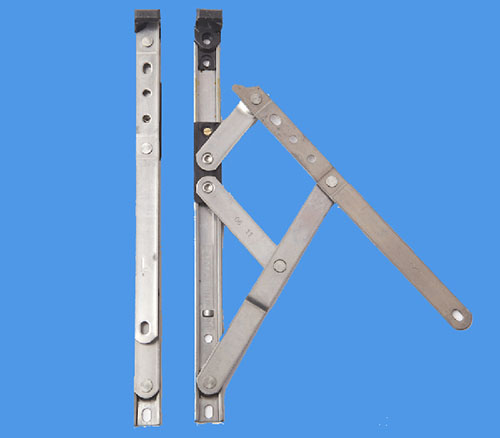

Top hung friction hinges for upvc double glazing windows from Cotswold.

  • Although these are classed as a 10" window hinges the metric length is 260mm
  • Stack height is 13mm - if you require 17mm stack height then we have easy-fit hinge packers available.
  • Width is 18mm
  • All our window hinge are supplied as a handed pair.
  • Also available in  8", 12", 16", 20" and 24"
  • Manufactured by Cotswold



If you can't see the part you need for your double glazed windows call us on 01204 652211 for free advice





Information from the manufacturer

 Conforming to all current British Building Standards and FENSA requirements.

 Manufactured in the United Kingdom using Ferretic stainless steel.

Austenetic version for coastal areas available by special order.

The stays have been proven to a lifetime 30,000 cycle guarantee.

Conforms to the requirements of BS6375 Part 2 1987.

Made by Cotswold Architectural Products







Window Hinge Measuring Guide

Step 1.  Check the hanging of your window.

  • If the handle is on the SIDE of the window, you need SIDE Hung Window hinges.
  • If the handle is at the BOTTOM of the the window you need TOP HUNG hinges.



TOP HUNG




SIDE HUNG




Step 2.  Measure the length of the hinge.(A)

  • The length is the track part that you can see when you open your window. Your old hinge may be a 10" but if you can fit a larger hinge in then do that. The few pennies extra will pay you back in extra years of service due to better weight distribution.






Step 3.  Measure the width of the hinge. (B)

  • Measure the width of the track that you have just measured, this could be either 15mm or 18mm.The most common one is the 18mm and is fitted on 90% of windows.


Step 4.  Measure the stack height.

  • This is not the easiest bit the do, the stack height is the actual thickness of the hinge. This can be difficult without taking the hinge off. Don't worry, THERE IS A WORKAROUND. We advise buying a pack of Hinge packers for a few pound that will enable all of our hinges to fit on your window regardless of the stack height. This will make you job infinitely easier and you will only have to remove the window opener once.

There are 2 different stack heights, 13mm and 17mm. The packers we sell clip on nice and snug to make the 13mm hinges up to 17mm with a simple clip on action.




View AllClose

F.A.Q

Frequently Asked Questions

Yes. All our window hinges come in pairs.

We can't promise that however if you have a upvc frame then its easy to put new screw holes in using self-tapping screws. Click here for screws

This is the thickness of the hinge when all the parts are closed or stacked on top of each other. Our hinges are all 13mm stack but if you need 17mm stack then our hinge packers will do the job for you.

View AllClose

Additional Information

Window Hinge Measurement Video:
Size:
10 Inch
Style:
Top Hung
Style:
Standard
Trackwidth:
18mm
