Mila GR Series Window Locking Mechanisms

Hover over image to zoom

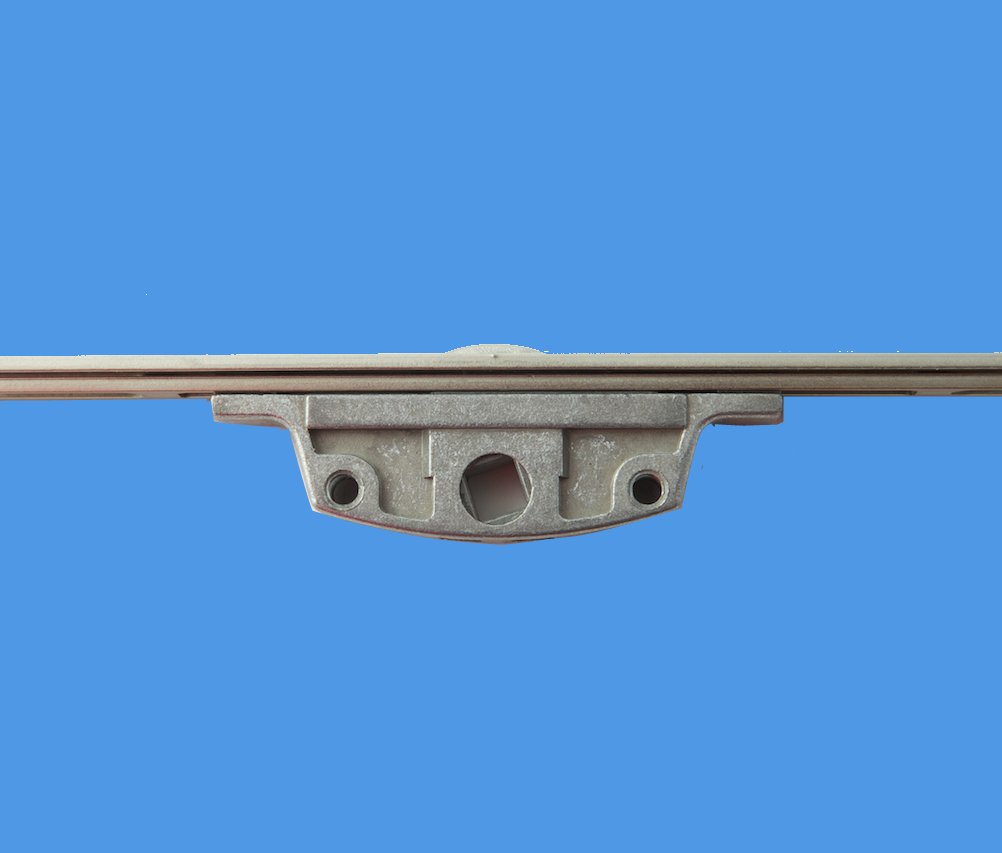

  • Mila GR Series Window Locking Mechanisms - Gearbox
  • Mila GR Series Window Locking Mechanisms
  • Mila Logo
£16.16 (inc VAT) £13.47 (exc VAT)
SKU:
WL-ESP-MILA-GR
Weight:
337.00 Grams
Availability:
Out of Stock
Shipping:
Calculated at checkout

Other Products You May Need

 Product Description

The 3 series  Fearless espagnolette mechanism from Mila is designed to fit standard and reduced depth eurogrooves. It provides smooth operation and effective sealing for all types of casement double glazing windows.

This mechanism has been discontinued by the manufacturer so some sizes are now unavailable.

However, alternatives are available - please contact us for details.

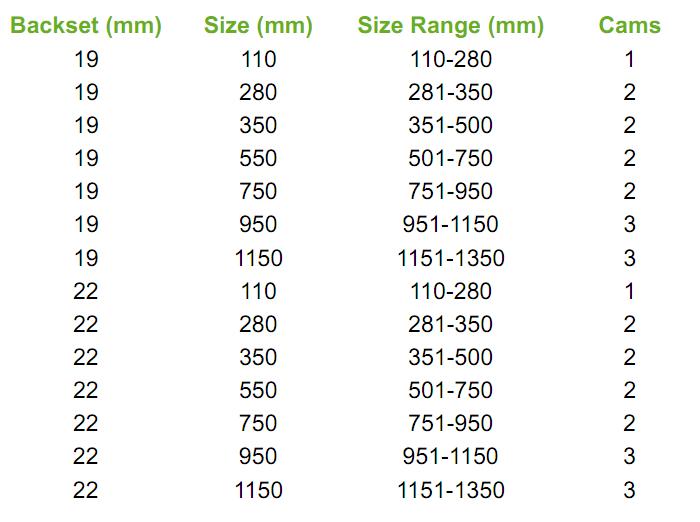

Available with 19mm or 22mm backset

  •           GR11 Espag window locking mechanism -110  mm long
  •           GR28 Espag window locking mechanism-280 mm long
  •           GR40 Espag window locking mechanism-350 mm long
  •           GR60 Espag window locking mechanism -550 mm long
  •           GR80 Espag window locking mechanism -750 mm long
  •           GR100 Espag window locking mechanism -950 mm long
  •           GR120 Espag window locking mechanism -1150 mm long

Not sure how to measure your window mechanism- Click Here




Not sure what window lock you need?



Call us on 01204 652211 for free advice



Information from the manufacturer

The 3 Series espag Locking mechanism is designed to fit standard and reduced depth eurogrooves. It provides smooth operation and effective sealing for all types of casement windows.



  • Available in 19mm or 22mm backset with 9mm cams
  • Brass mushroom cams compression adjustable +/-1mm
  • Faceplate in steel
  • Lockcase in zinc diecast
  • Fits standard and reduced depth eurogrooves
  • BBA approved product



Espag Lock Backset Measuring Guide



 SIMPLE STEPS TO HELP YOU CHOOSE THE CORRECT FOR YOUR WINDOW LOCK









To Measure the backset on your window lock you need to measure from the middle of the spindle hole to the front of the face plate. Take a look at the picture below and the red arrows show you where to measure.



The holes that the Bolts go through are a set distance and are the same on ALL window locks (43mm).




 Other Details

Low Stock::
Call us for availability - 01204 652211
